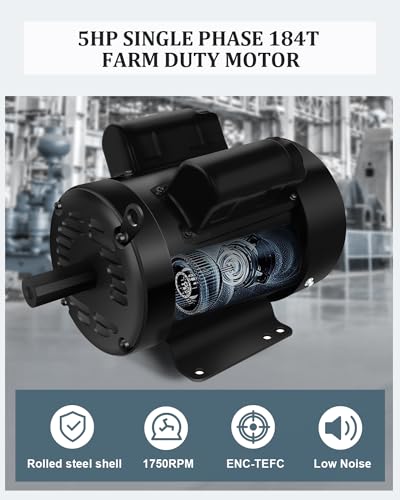

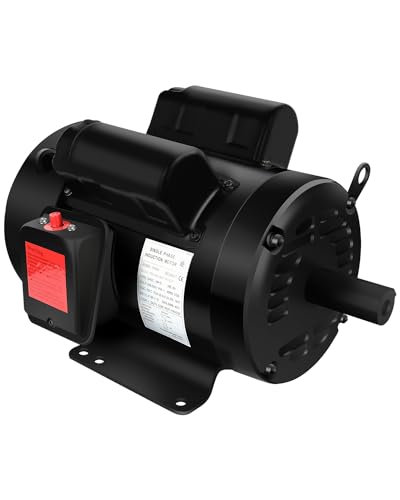

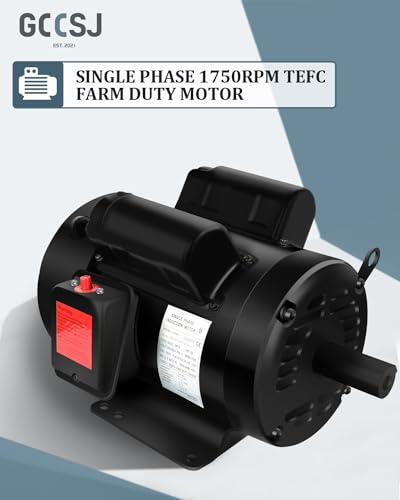

Air Compressor Motor 5HP Electric Motor 1750 RPM, Single Phase,184T Frame, 208V-230V, 1-1/8″Shaft Diameter Rolled Steel Shell 60HZ

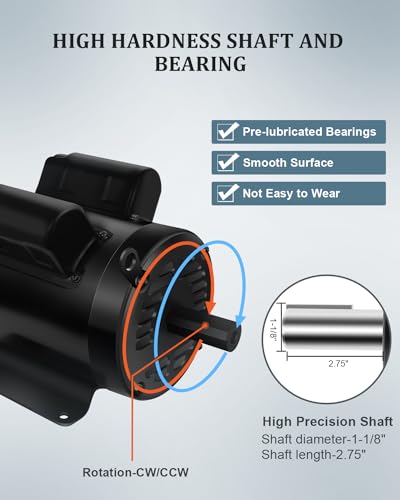

5HP Air Compressor Motor: POLE – 4, FRAME – 184T, ENC – TEFC, IP – 54, INS – F, Rotation -CW/CCW, Shaft diameter – 1-1/8″, Shaft length – 2.75″,Voltage: 208V-230V, AMP: 28.5-27.0A, RPM: 1750.

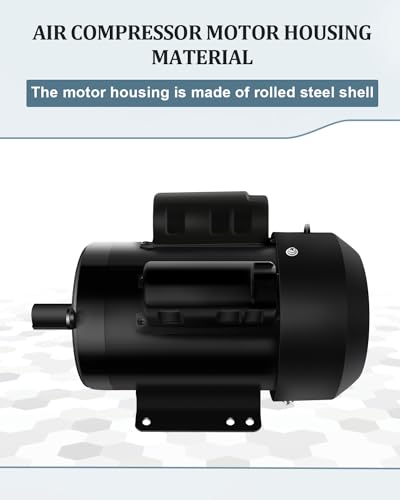

AC Motor Housing Material: Rolled steel shell. Adopt S1 continuous working system. Safe and durable, long service life.

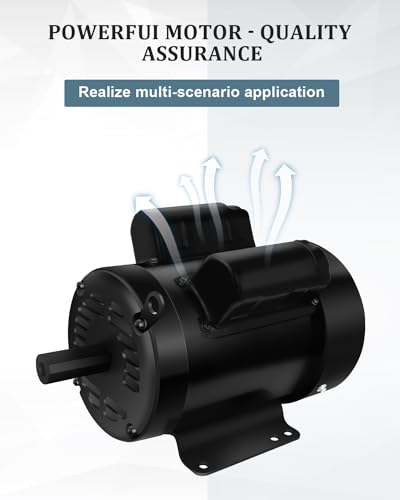

Fully Enclosed Fan: Electric motor with large fan at one end, even in wet and dusty conditions, cools the motor during long runs, thus reducing energy costs, reducing operating temperatures and increasing service life.
High Working Efficiency: Compact structure and small size, electric motor can run at the maximum speed of 1750 rpm, high working efficiency; There are lots of heat sinks, so it has huge heat sinks.
Widely Application: The electric motor with protector, is specifically designed for air compressors and widely used in industrial and agricultural production, transportation, commercial and household appliances and other fields. For example, water pump, agricultural machinery and so on.
